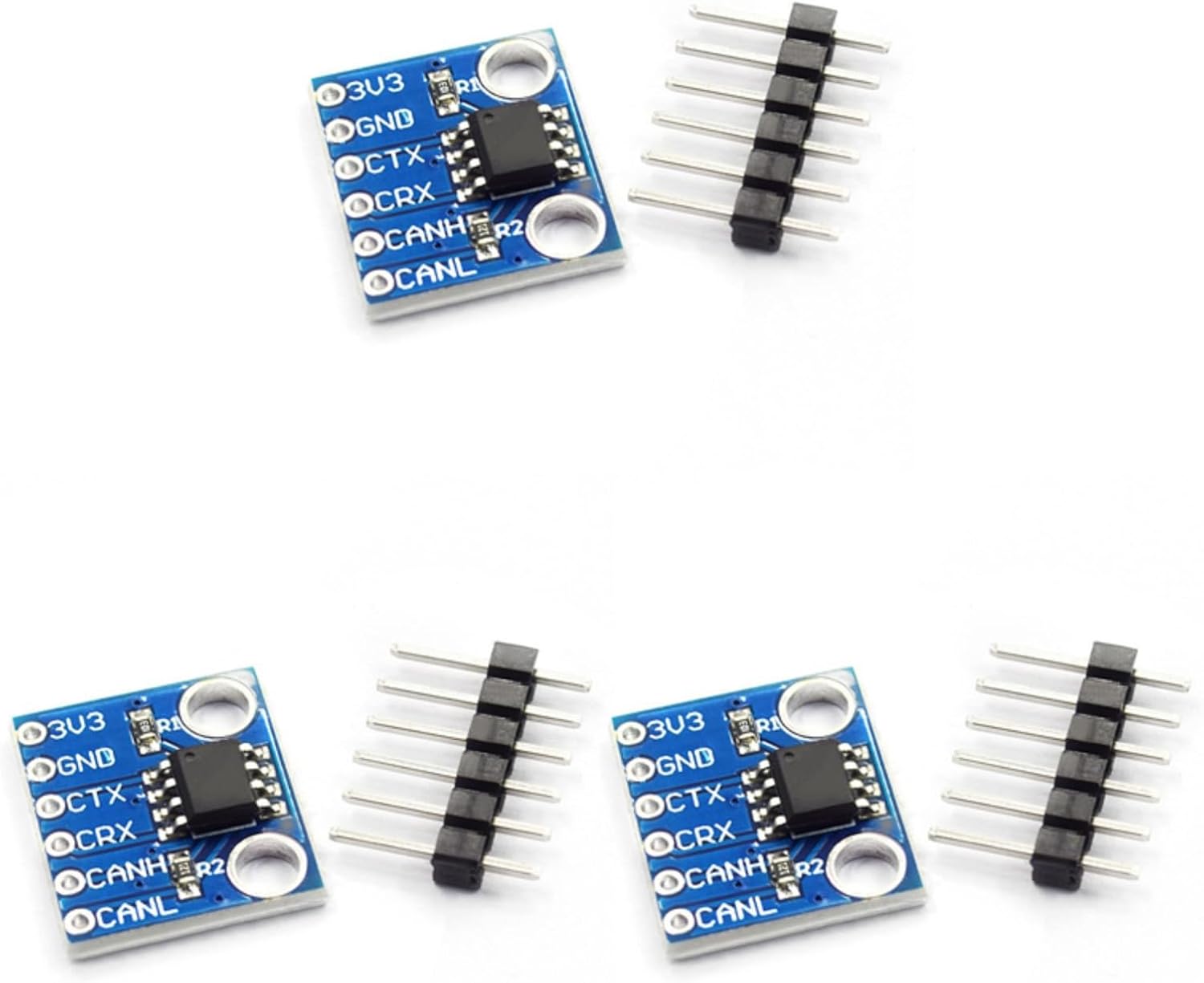

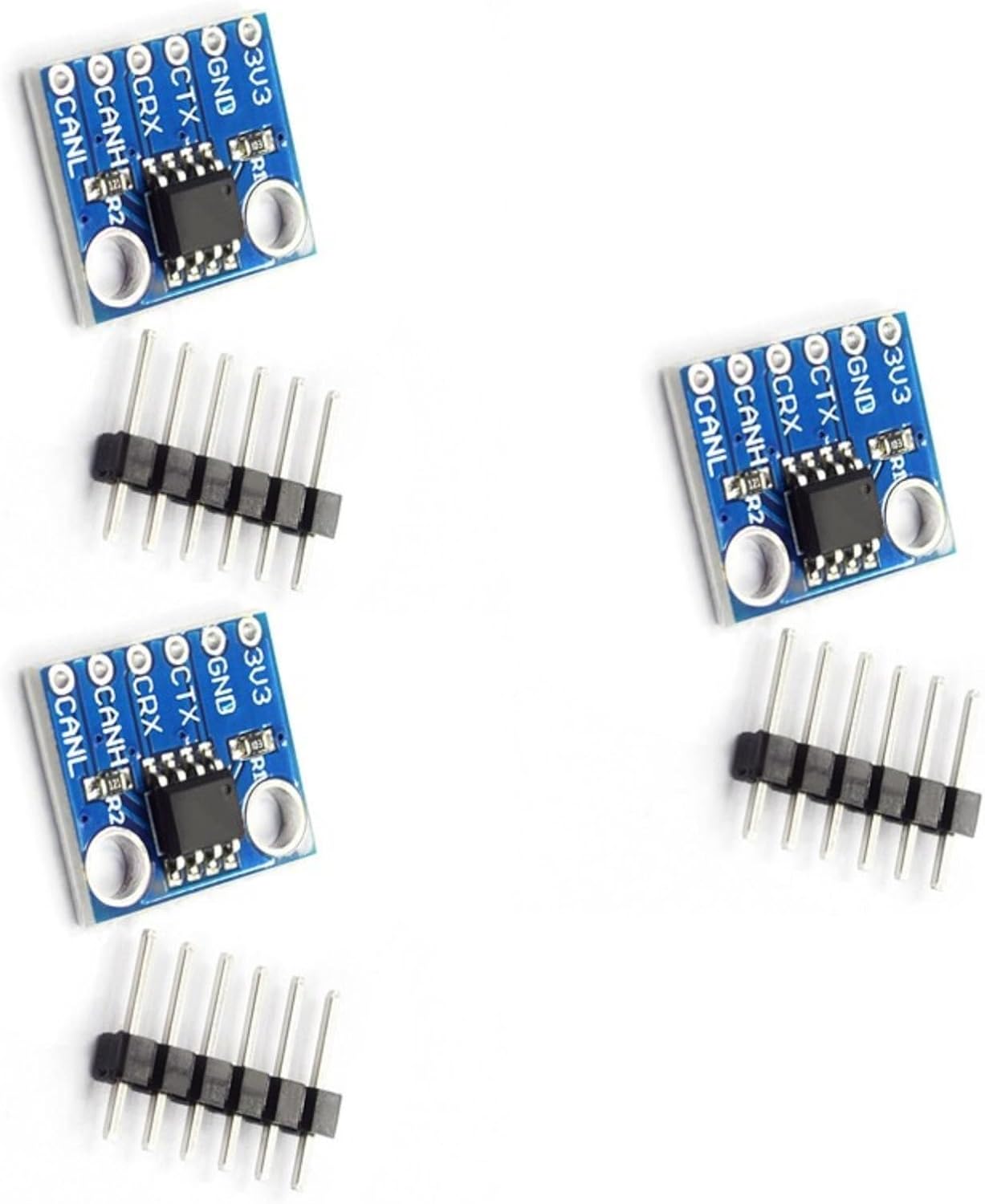

3Piece / 1Piece CAN Bus Transceiver SN65HVD230 for Boards with Differential Signals Transmission ISO11898 Compatible CAN Bus Module

3Piece / 1Piece CAN Bus Transceiver SN65HVD230 for Boards with Differential Signals Transmission ISO11898 Compatible Features: High input impedance, allowing 120nodes; Low current standbys mode, the typical current is 370A; Signals transfer rate up to 1Mb / s Thermals protections, open fails-safes function: With antimoment interferences protections function bus Slopes control, reduce radio frequency interferences ( RFI): Differential receiver with wide ranges of anticommon mode interferences, electromagnetic interferences capabilities.Operating mode and control logicsSN65HVD230 highly speed, slopes and wait three different mode of operate Its mode of control can be achieved by control pin Figure 2 is a SN65HVD230 CAN bus systems in a typical application diagram Can see from the figure, CAN controller is connecting to the output pin SN65HVD230 data input terminals D this CAN nodes can send data transferred to the CAN networking: CAN controller and receive pin of Rx and SN65HVD230 R data output terminals coupled for receiving data Option SN65HVD230 port via jumpers and sloperesistance ground at 1end, a way can be achieved through hardware choose 3mode of operate, in which the slopes is 0-100k resistors potentiometer Specifications: Component: Size: Approx.17x15mm / 0.67x0.59inch Option Type: 1pc CAN Bus Transceiver Module, 3pcs CAN Bus Transceiver Module Package Includes: Package A 1pc SN65HVD230 CAN Bus Transceiver Module Package B 3pcs SN65HVD230 CAN Bus Transceiver Module Note: Please allow 1-2cm errors due to manual measurement Due to the differences between different monitors, the picture may not reflect the actual item color

• High input impedance, allowing 120nodes
• With antimoment interferences protections function bus
• Differential receiver with wide ranges of anticommon mode interferences, electromagnetic interferences capabilities.Operating mode and control logicsSN65HVD230 highly speed, slopes and wait three different mode of operate Its mode of control can be achieved by control pin Figure 2 is a SN65HVD230 CAN bus systems in a typical application diagram Can see from the figure, CAN controller is connecting to the output pin SN65HVD230 data input terminals D this CAN nodes can send data transferred to
• Signals transfer rate up to 1Mb / s
• Low current standbys mode, the typical current is 370A
